• Homogenizer Beating (standard type)
  • DH-08S
  • DH-08S
  • Homogenizer Beating (standard type)
  • widely used for homogenization of animal tissues, biological samples, etc. It can be applied in the fields of food, medicine, cosmetics, clinical medicine, molecular biology, toxin and bacteria detect
Homogenizer Beating adopts a stainless steel system, which can effectively separate the surface of solid samples and the homogenous microbial sample contained within. The sample is placed in a disposable sterile homogenization bag, which does not come into contact with the instrument. This homogenizer has the characteristics of gentle homogenization, no sample contamination, no damage, no temperature rise, and no need for sterilization treatment or washing of containers, meeting the requirements for rapid, accurate results and good reproducibility.
Product Introduction

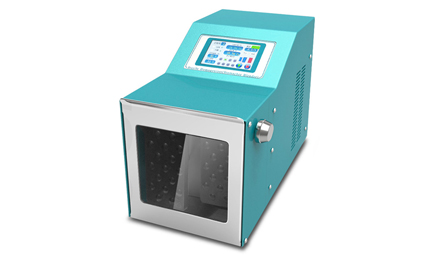

DH-08S Homogenizer Beating, also known as a Bead Beater, is widely used for homogenization of animal tissues, biological samples, and is applicable in fields such as food, pharmaceuticals, cosmetics, clinical, molecular biology, toxin and bacterial detection, and is particularly suitable for preparation of microbial detection samples. The device uses a stainless steel system, which can effectively separate solid sample surfaces and uniform samples of enclosed microorganisms. Samples are placed in a disposable sterile homogenization bag, which does not come into contact with the instrument. It has the characteristics of gentle homogenization, no sample contamination, no damage, no temperature rise, no need for sterilization treatment, and no need to wash vessels, satisfying the requirements of rapid, accurate results and good repeatability. This product is also suitable for homogenization of tumor tissues (such as liver cancer, colon cancer, gastric cancer, and breast cancer), which can obtain a large number of single cells (2 × 100,000 in 2 minutes). When necessary, soft crushing of tissue cells (such as liver) can be achieved by extending the homogenization time.


Product Application
● Large LCD screen with touch control
● Can store up to eight working programs
● Adjustable homogenization time
● Homogenization speed can be adjusted or fixed
● Beater distance can be adjusted
● Sterile disposable filter bag for hygiene and safety
● Fully open door for easy cleaning
● Glass transparent window for easy observation
● No contact between sample and homogenizer, no system cleaning required if there is no sample leakage
● Homogenization is gentle, sample is not contaminated or damaged, no temperature rise, no sterilization required, no need to wash the vessel


Technical Specifications
Model: DH-08S
Voltage: 220V/50Hz
Blending Speed: 3-12 times/sec, actual blending speed displayed, system automatically adjusts blending speed
Timing Range: 0~99 hours 59 minutes 59 seconds
Programmable Segments: 8 programmable segments, arbitrary combination of parameters can be set
Temperature Control Range: /
Blending Distance: 0-50mm adjustable (adjusted by rear knob)
Maximum Power: 200W
Sterile Bag: 17x30cm
Sterilization Function: /
Weight: 18 Kg
Dimensions: 420x230x330 mm




Single Page - Color Page
Name: Author: Action:
Homogenizer Beating (standard type) DH-08S homogenizer Download


Related products
Name: Model:
Homogenizer Beating DH-08S
Aseptic Homogenizer Beating DH-11L
Homogenizer with Sterile Beating DH-09S
Product List
DH-08S Unit
Host Machine Unit
Homogeneous bag

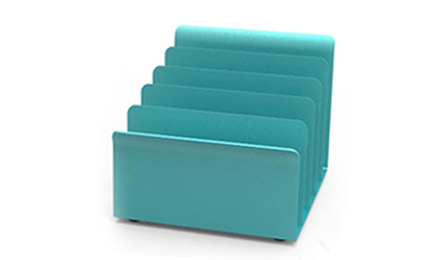

Homogeneous frame set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
Optional
1
1
1
